Fully Automatic Condensation Point Cold Filter Point Tester -68 ～ 30 ℃ ASTMD 6371

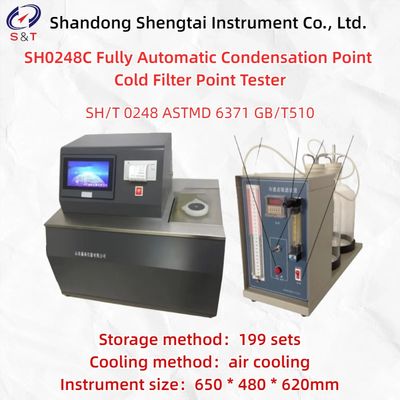

SH0248C Fully Automatic Condensation Point Cold Filter Point Tester

The SH0248C fully automatic pour point and cold filter point measuring instrument is based on the national standards GB/T510 "Determination of pour point of petroleum products" and SH/T 0248. It adopts modern advanced technology and integrates mechanical, optical, electronic and computer technologies to automatically complete the testing of pour point and cold filter point of petroleum products. This instrument adopts photoelectric detection technology, glass test tube automatic tilting method, and imported compressor refrigeration system to ensure the required refrigeration depth.

Instrument features: Designed with an embedded system and equipped with an imported PT100 temperature sensor, the entire testing process is automatically monitored; Color touch screen; The experimental results can be stored; You can view historical data; Printing results on the instrument, mechanical automatic stirring, and experimental results can be exported through a USB flash drive and stored in a computer for multiple experiments and comparisons.

● Compliant with standard: SH/T 0248 ASTMD 6371 GB/T510

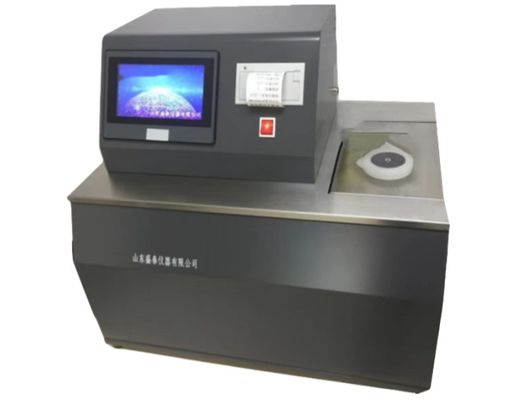

● Upgrade to 7-inch TFT color LCD display;

● Refrigeration method: Fully enclosed high-efficiency refrigeration compressor.

● Experimental cold trap: 1 (can be used for 2 holes).

● Detection method: Imported OMRON photoelectric switch detection

● After upgrading, historical data can be stored for easy retrieval; It can also be equipped with USB output function.

● Standard micro printer with automatic measurement and printing

● After the experiment is completed, if there is no personnel operation, the automatic shutdown time of the refrigeration machine can be set arbitrarily within 0-50 minutes to avoid frequent opening of the compressor and extend the service life of the instrument,

Technical parameters:

● Compliant with standard: GB/T510 SH/T 0248 ASTMD 6371

● Temperature measurement range: -68 ～ 30 ℃

● Resolution: 0.1 ℃

● Pressure measurement range: 200mmH2O ± 1mmH2O

● Number of test samples: 1 channel

● Temperature measuring element: PT100

● Detection method: Upward mounted photodetector

● Refrigeration method: Imported stacked compressor refrigeration

● Cooling method: air cooling

● Printing: 20 column Chinese character dot matrix printing

● Display: 128 * 64 Chinese characters displayed

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● Instrument size: 650 * 480 * 620mm

● Instrument weight: 75kg

● Packaging size: 690 * 520 * 660

● Packaging weight: 80kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
