SH707 Intelligent Flash Point Tester Android System ASTM D92

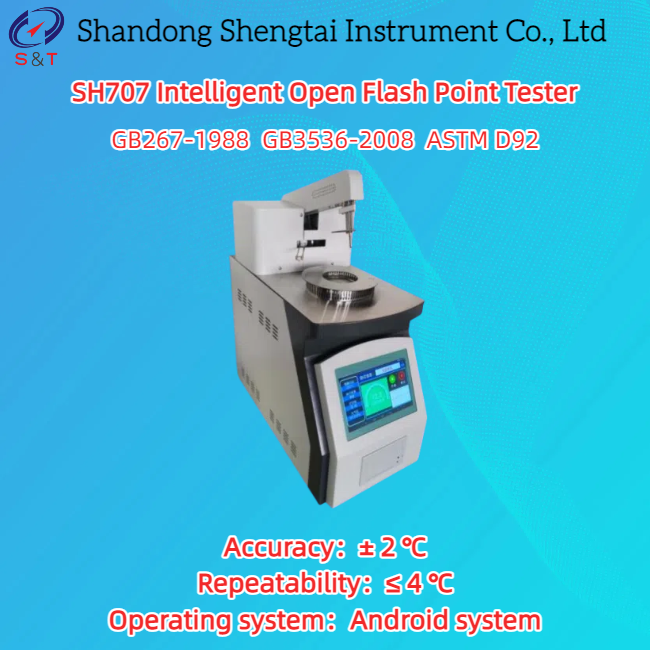

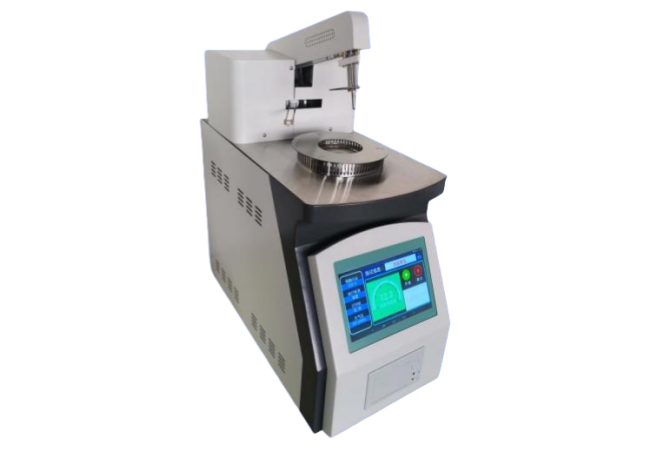

SH707 Intelligent Open Flash Point Tester

The SH707 intelligent flash point tester adopts a combination of microcomputer technology and Android system, with a large screen LCD display. The instrument heats up, automatically lifts, ignites, displays, locks the flash point value, and prints the results according to standard methods. After testing, it can automatically cool down, achieving full automation of the working process. Widely used in departments such as power, petroleum, chemical, commercial inspection, and scientific research. Compliant with GB267-1988, GB3536-2008, and ASTM D92 standards.

High definition color touch screen, Android operating system and Internet plus technology are used to make the display content more colorful. You can surf the Internet, download documents, browse electronic user manuals, etc., improve the human-computer interaction ability, and make the operation more convenient. This product has added local control, with a data storage capacity of 1G. The electrical control and mechanical structure are designed with new modular technologies, making the product durable, sturdy, safe and reliable to operate. The product's appearance adopts industrial design, giving it a modern aesthetic.

Functional features:

● 7-inch color touch screen, fully Chinese human-machine dialogue interface, unmarked keyboard

● Android operating system, internet access, downloads, LAN control

● Can be connected to mobile software for remote operation and control, real-time synchronization, and can export data

● Automatically detect atmospheric pressure and correct the impact of atmospheric pressure on the test, and calculate the correction value.

● Detection method: Differential detection of detection loop

● The ignition, detection, and printing data are automatically completed, and the test arm is automatically raised and lowered.

● Electronic ignition, forced air cooling, no need for air source, automatic ignition.

● Test the flash point and ignition point of the test sample, dual-use for one machine

● Printer: equipped with a micro printer

● Historical data: A single machine can store 1000 pieces of data

● Pressure detection device: Equipped with a built-in pressure detection device, it automatically corrects atmospheric pressure.

● Automatic ignition without the need for a gas source improves the safety of the test.

● Clock display (power down hold)

● You can export EXCEL spreadsheets through your mobile phone, store them on your computer for a long time, and save data indefinitely

Technical parameters:

● Temperature range: Room temperature＋5 ℃ ～ 400 ℃

● Temperature measurement: PT100 platinum resistance (Class A)

● Accuracy: ± 2 ℃

● Resolution: 0.1 ℃

● Repeatability: ≤ 4 ℃

● Display mode: Large screen color LCD display

● Operating system: Android system

● Data capacity: 1G

● Ignition method: Electric ignition

● Cooling method: Built in strong air cooling and forced air cooling

● Printer: Thermal sensitive, Chinese characters, 40 lines

● Self checking function: test head, mixer, fan, igniter

● Power consumption:<500W

● Working voltage: AC220V ± 10% 50 ± 5HZ

● Applicable ambient temperature: 5 ～ 40 ℃

● Applicable environmental humidity: 30% ～ 80%

● Printer: Thermal type, 36 characters, Chinese character output

● Instrument size: 480 × 250 × 450mm

● Instrument weight: 15kg (new)

● Packaging dimensions: 550mm × 305mm × 575mm

● Packaging weight: 20.4kg (new)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
