5-Hole Actual Gum Tester Air Method 160-165℃ ASTM D381

  • 5-Hole Actual Gum Tester Air Method 160-165℃ ASTM D381
  • 5-Hole Actual Gum Tester Air Method 160-165℃ ASTM D381
Lieu d'origine Chine
Nom de marque Shandong Shengtai Instrument Co., Ltd.
Certification GB/T 8019-2008 ASTM D381
Numéro de modèle SH8019A
Quantité de commande min 1
Détails d'emballage Étui en bois
Délai de livraison 7 à 15 jours ouvrables
Conditions de paiement t/t
Capacité d'approvisionnement 10000 ensembles par an

Contactez-moi pour des aperçus gratuits et des bons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Nombre de trous d'essai 5 Taille du trou d'essai φ51mm * 70mm
Plage de températures Température ambiante ～ 260°C Température de travail (160 °C à 165 °C)
Affichage de la température Display numérique Affichage d'écoulement affiché par un débitmètre à billes flottantes
Mettre en évidence

5-hole gum tester ASTM D381

,

air method gum tester 160-165℃

,

crude oil testing equipment with warranty
Laisser un message
Description de produit
5 Holes Actual Glial Measurement Instrument Air Method 160℃ ～ 165℃ ASTM D381
Product Attributes
Attribute Value
Number of test holes 5
Test hole size φ51mm * 70mm
Temperature range Room temperature ～ 260℃
Working temperature (160 ～ 165)℃
Temperature display digital display
Flow display displayed by a floating ball air flow meter
Product Description

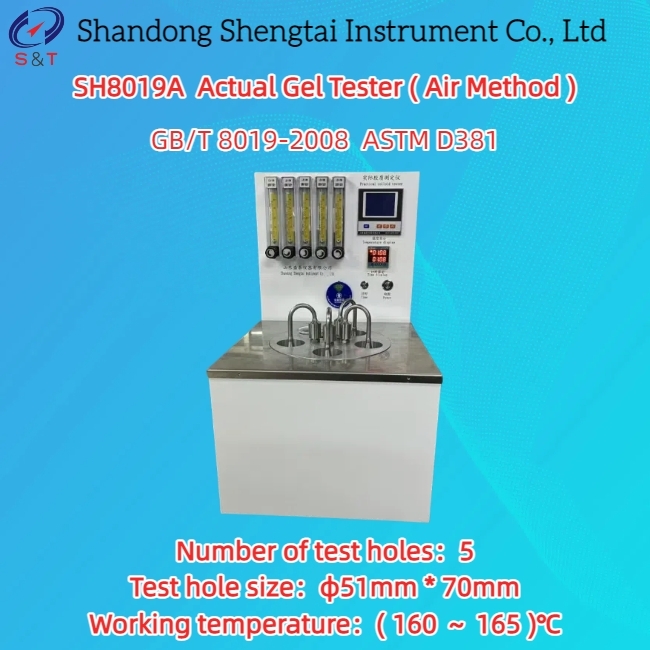

SH8019A Actual Gel Tester (Air Method)

SH8019A actual gum analyzer is a specialized instrument used to determine the actual gum content in aviation gasoline and automotive gasoline.

Suitable for conducting actual gel testing on aviation gasoline and automotive gasoline using the method specified in GB/T 8019-2008 "Determination of Gel Content - Jet Evaporation Method" equivalent to ASTM D381.

Main Technical Parameters
  • Working power supply: AC220V ± 10% 50Hz
  • Evaporation bath type and size: Aluminum bath block with a diameter of 260mm * 130mm
  • Number of test holes: 5
  • Test hole size: φ51mm * 70mm
  • Temperature range: Room temperature ～ 260℃
  • Working temperature: (160 ～ 165)℃
  • Temperature control method: automatic temperature control
  • Temperature display: digital display
  • Flow display: displayed by a floating ball air flow meter
  • Working pressure of air pressure reducing valve: ＜ 0.1MPa
  • Jet nozzle outlet air flow rate: 600mL/S per hole
  • Input power: ＜ 2000W
  • Dimensions: 590mm * 480mm * 340mm (L * W * H, excluding thermometer holder)
  • Packaging size: 555 * 420 * 645 mm
  • Packaging weight: 51.5kg (wood)

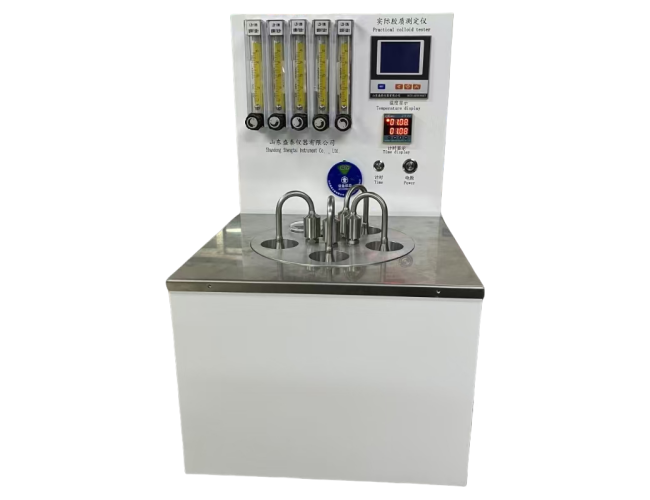

5-Hole Actual Gum Tester Air Method 160-165℃ ASTM D381 0
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

  • The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
  • The materials and main components provided meet the technical requirements specified in the technical documentation
  • The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
  • We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
  • Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
  • After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
5-Hole Actual Gum Tester Air Method 160-165℃ ASTM D381 1
Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Number Name Quantity Unit Note
1 Host 1 Unit
2 Air compressor 1 Unit
3 Horn shaped nozzle 5 Piece
4 Beaker 5 Piece
5 Purifier 1 Piece
6 Instructions 1 Copy
7 Packing list 1 Copy
8 Certificate of Conformity Warranty Card 1 Copy
