Particle Crushing Strength Tester 1-50kg Speed 0.5-500mm/Min 13.5kg GB/T 44750
| Lieu d'origine | CHINE |
|---|---|
| Nom de marque | Shandong Shengtai Instrument Co.,Ltd |
| Certification | GB/T2946-2018 GB/T2945-2017 HG/T2783-1996 HG/T3927-2020 GB/T 30202.3-2013 GB/T 44750-2024 |
| Numéro de modèle | ST120K |
| Quantité de commande min | 1 |
| Détails d'emballage | Caisse en bois |
| Délai de livraison | 7-15 jours de travail |
| Conditions de paiement | T / t |
| Capacité d'approvisionnement | 10000 sets / an |
Contactez-moi pour des aperçus gratuits et des bons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Résolution de la mesure de la force | 1/10000 | Plage de mesure | 1 à 50 kg (personnalisable) |
|---|---|---|---|
| Exactitude de la mesure de force | Mieux que ± 1% | Résolution de déplacement | 0,01 mm |
| Vitesse de test | 0,5-500 mm / min | Taille de l'instrument | 440 × 320 × 590 mm |
| Conditionnement | Carton | Alimentation électrique | monophasé, CA 220 V, 50 Hz |
| Mettre en évidence | Particle crushing strength tester 1-50kg,Food testing instrument 500mm/min speed,GB/T 44750 particle strength tester |
||
Description de produit

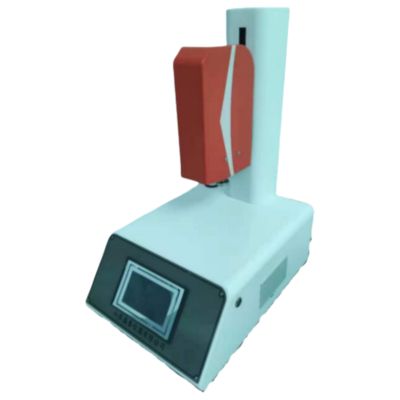

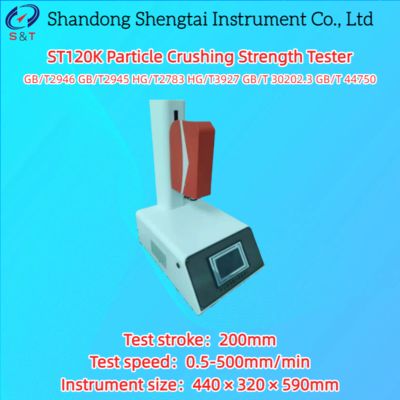

ST120K Particle Crushing Strength Tester
The ST120K particle crushing strength tester is designed and manufactured according to the measurement requirements of GB/T2946-2018 "Ammonium Chloride" and GB/T2945-2017 "Ammonium Nitrate", which meets the requirements of the national standard and is continuously optimized and innovated. The electrical control system realizes simplified operation, making the operation simpler, more convenient and reliable. HG/T2783-1996 Test Method for Compressive Crushing Strength of Molecular Sieves, Determination of Compressive Strength in HG/T3927-2020 "Industrial Activated Alumina" GB/T 30202.3-2013 "Test Method for Coal Granular Activated Carbon Used for Desulfurization and Denitrification Part 3: Wear Resistance and Compressive Strength", GB/T 44750-2024 "Measurement of Granular Compressive Strength"
Standard: GB/T2946-2018,GB/T2945-2017,HG/T2783-1996,HG/T3927-2020,GB/T 30202.3-2013,GB/T 44750-2024
Functional features:
● Real time display of force curve trend chart
● It can be automatically stopped by setting the displacement to reach the set distance
● Compression test, the product will automatically shut down after being compressed to its maximum value
● Automatically measure the size of particle strength, automatically generate results, and automatically calculate the maximum and minimum values for multiple sets of data
Technical Parameter:
| Force measurement resolution |
1/10000 (e.g. 200kg ÷ 10000=0.02kg); 2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001) |
| Measurement range | 1-50kg (customizable) |
| Force measurement accuracy | better than ± 1% |
| Displacement resolution | 0.01mm |
| Test speed | 0.5-500mm/min |
| Test stroke | 200mm |
| Instrument size | 440 × 320 × 590mm |
| Instrument weight | 13.5kg |
| Packaging size | 570 × 430 × 680mm |
| Packaging Weight | 18.9 kg (cardboard box) |
| Power supply | single-phase, AC 220V ,50HZ |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Product packing list
| Number | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Power cord | 1 | Strip | |
| 3 | Fuse tube | 1 | Piece | 10A inside the insurance seat |
| 4 | Instruction manual | 1 | Copy | |
| 5 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
