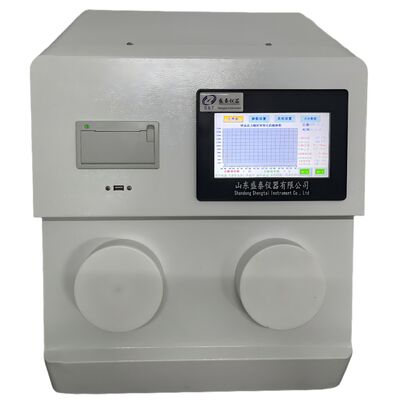

2 Holes Automatic Rotating Oxygen Bomb Tester 0 ～ 1.6MPa RT ～ 200.0℃ ASTM D2272

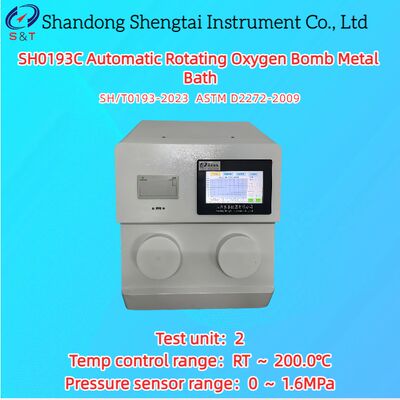

SH0193C Automatic Rotating Oxygen Bomb Metal Bath

SH0193C automatic rotating oxygen bomb tester is designed and manufactured according to the national standard ASTM D2272-2009 "Lubricating oil oxidation stability determination method" metal bath standard.Suitable for assessing the oxidation stability of new and in-service turbine oils with the same composition (base oils and additives).

It can also be used to evaluate new mineral insulating oils containing 2, 6- ditert-butylp-cresol, as a quick method to evaluate their oxidation stability.

The test results are used to test the new mineral insulating oil containing 2, 6- dit-butyl p-cresol or 2, 6- dit-butyl phenol or both, and the performance of each batch of oil can be continuously controlled.

The performance characteristics

● For new oil, in oil, steam turbine oil, lubricating oil, insulation oil and automobile gasoline engine oil, etc.

● The metal measuring pool reduces the unpleasant smell emitted by the medium oil during the test, and eliminates the possible danger due to the long time of the experiment.

● It can automatically detect the pressure, record the data, calculate the oxidation time and finish the test automatically.

● Metal bath heating free of liquid medium.

● Ventilation is simple, no need to be placed in the fume hood, waste gas and odor can be simply discharged through the plastic pipe.

● Can control the operation of 2 groups of tests at most

● Sample temperature sensor assembly: can measure the sample temperature in the process of testing

● Instrument display: 7 inch color touch screen, beautiful interface, easy to operate

● High degree of automation: automatic constant temperature, automatic oxygen filling, automatic determination of leakage, automatic recording of test data and real-time display of the curve, automatic determination of the inflection point of the test, automatic test after cutting off the heating.

● Micro printer: surface plate type thermal sensitivity.

● Imported PT100 temperature sensor is adopted.

● High precision pneumatic pressure sensor with high sensitivity.

Technical parameters:

● Result output: It can also be equipped with a USB drive output function, which can be output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
