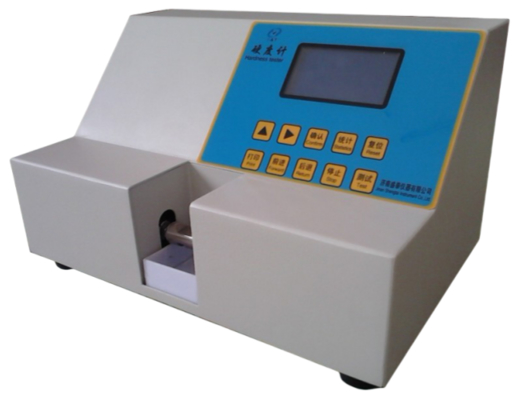

Fully Automatic Tablet Hardness Tester with Microprinter and 220V Power Supply

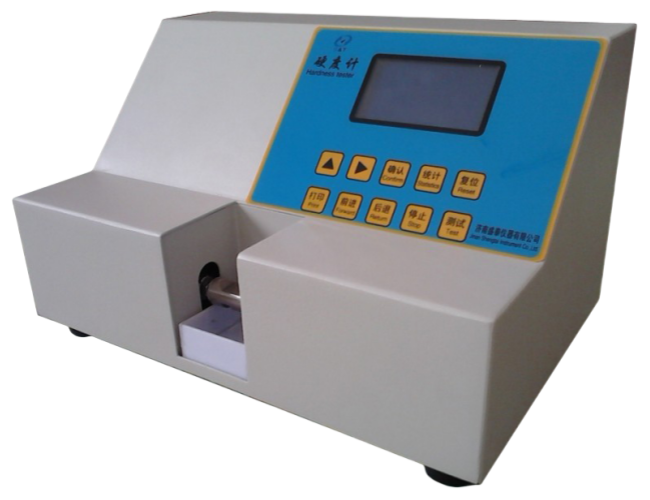

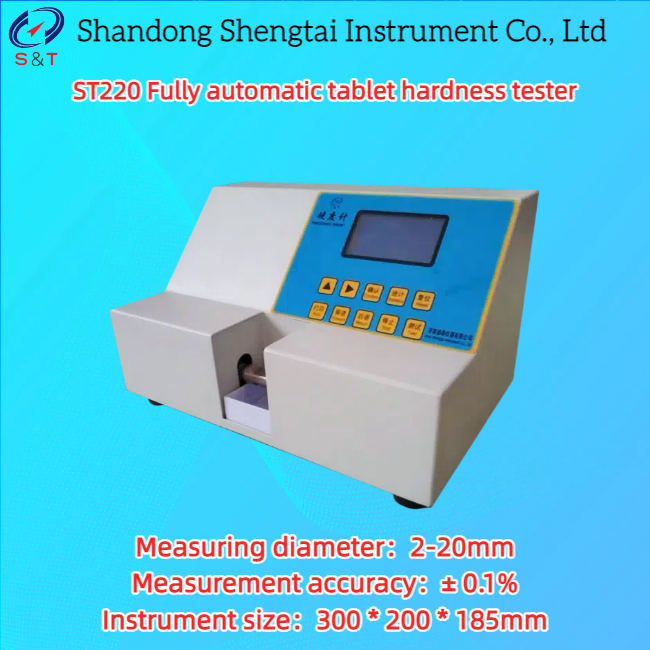

ST220 Fully automatic tablet hardness tester

Instrument usage:

ST220 tablet hardness tester is a specialized testing instrument for testing the hardness quality of tablet drugs. This instrument is suitable for hardness testing of tablet drugs and is an essential instrument for laboratories in pharmaceutical factories, pharmaceutical research and education, scientific research, and drug testing departments.

Structural features:

This instrument adopts a high-speed single-chip microcomputer control system with super strong data processing capabilities. It uses high-precision pressure sensors to measure and automatically test the maximum, minimum, average, standard deviation, and dispersion coefficient reports of tablets. The result data can be printed. The output display mode is a blue LCD screen, which is easy to operate and intuitive to display. The high-precision motor feed mechanism automatically measures the awesome evenly, avoiding the error caused by uneven force each time.

Testing principle:

When the maximum value is reached, the tablet drug or particle will automatically break, and the hardness value will be recorded.

Main technical parameters:

Power supply: 220V ± 10% 50Hz

Printer: Microprinter

Measurement pressure: 10N-400N (1kg-40kg)

Measuring diameter: 2-20mm

Measurement accuracy: ± 0.1%

Resolution: 0.01Kg (0.1N)

Input power: 15W

Instrument size: 300 * 200 * 185mm

Packaging size: 360 * 260 * 260mm

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
