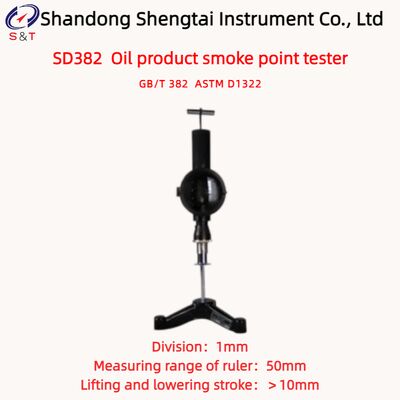

Kerosine And Aviation Turbine Fuel Smoke Point Tester 50mm Ruler ASTM D1322

SD382 Oil product smoke point tester

Standard: GB/T 382 ASTM D 1322

The SD382 kerosene smoke point tester is designed and manufactured according to the standard GB/T 382-83 (91) "Coal Oil Fume Point Determination Method".

The smoke point wick of kerosene and jet fuel complies with GB/T 382-2017 "Determination of smoke point of kerosene and jet fuel", ASTM D 1322-08 standard, ASTM D1322 standard test method for smoke point of kerosene and aviation turbine fuel, used to determine the smoke point of kerosene and jet fuel for lamps.

Smoke point, also known as smokeless flame height, refers to the maximum height of a smokeless flame when a sample burns in a standard lamp under specified conditions, expressed in millimeters (mm). The sample oil burns inside the standard lamp, and the change in flame height is reflected on the millimeter scale background. When measuring, raise the wick to the point where a smoke flame appears, and then lower it to the point where the smoke tail has just disappeared. The height of the flame at this point is the smoke point of the sample.

Smoke Point Apparatus for Kerosene ASTM D1322

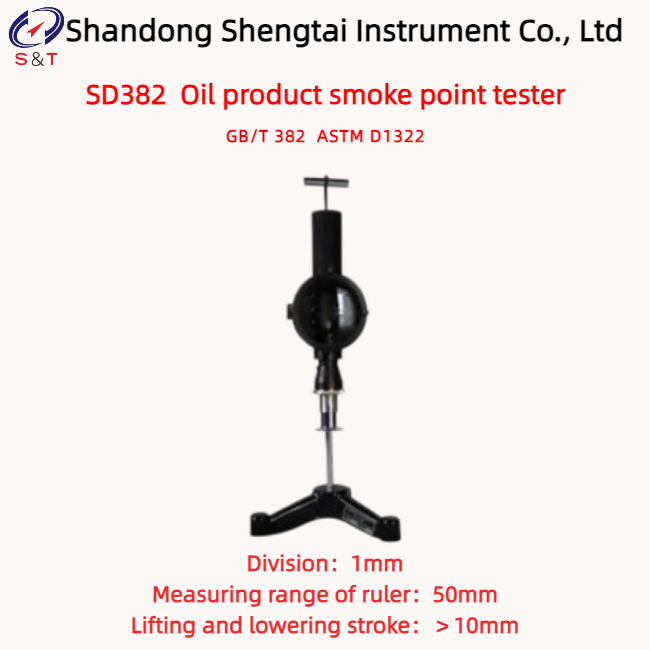

SD382 Kerosene Smoke Point Apparatus

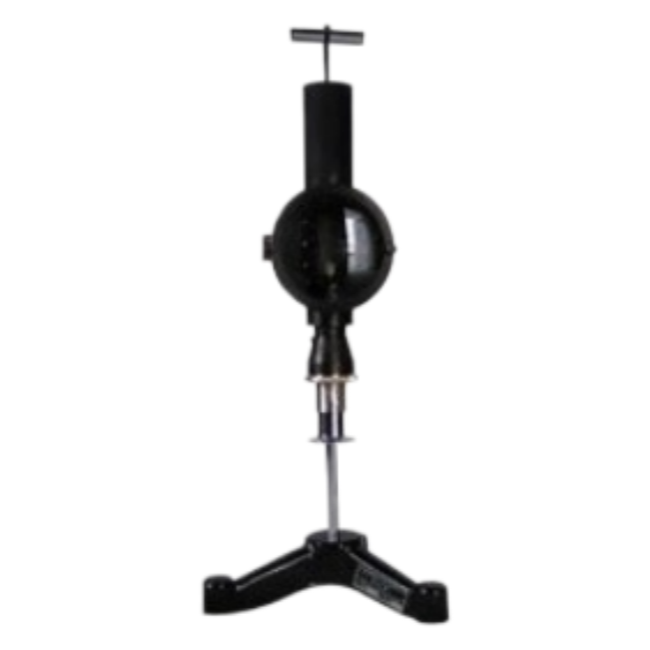

ASTM D1322 Kerosine and Aviation Turbine Fuel Smoke Point Tester SD382

Functional features

● The kerosene smoke point tester adopts millimeter scale background, which can clearly read the data

● The whole instrument structure is compact and complete

● The kerosene smoke point tester adopts plug type structure, the replacement of lampwick is more convenient

● The kerosene smoke point tester adopts special glass observation window, easy to operate

● The kerosene smoke point tester is easy to operate and has high repeatability

Technical Specifications

● Ruler: the ruler should be marked with white on the black glass, and the white or black stripes of 2 mm in the center of the ruler should be vertically divided into two halves. The measuring range of the ruler shall be 50 mm and the grading shall be 1 mm. Number every 10 millimeters and mark every 5 millimeters with longer lines.

● Wick guide: the top of the wick guide should be precisely at the same level as the zero point on the ruler.

● Lifting seat: the total distance of travel should not be less than 10 mm, smooth and uniform when moving.

● Ф oil container: fuel reservoir is mainly composed of fuel reservoir ontology, the wick and other components of the pipe and air duct, the critical dimension in line with the GB/T382, oil container ontology diameter is Ф21.25±0.05 mm, length of 109.0±0.05 mm; Wick pipe inner Ф4.7±0.05 mm, length is 82.0±0.05 mm; Air duct diameter is Ф3.5±0.05 mm, 90.0±0.05 mm length.

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
